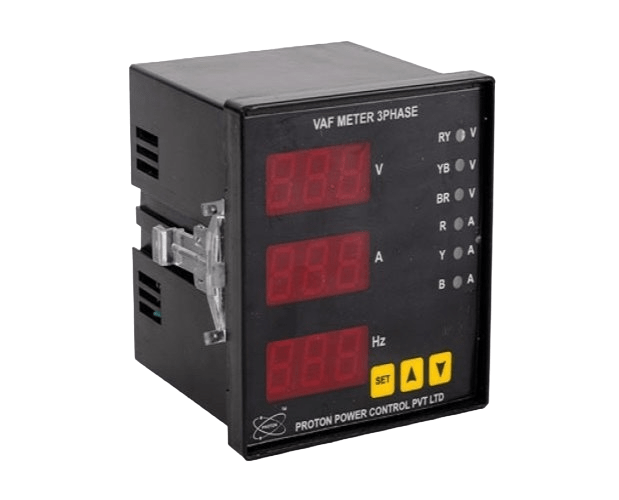

Product details
Technical Specifications:-
Supply: 3 Phase 415 V AC, 50 Hz [R, Y, B, N]
Resolution: 1 V for Voltage, 0.1 Hz for Frequency,
1A for Current >=100 & 0.1 A for Current <100
Display: 3 Digit 0.5”, Common Cathode bright RED 7
seg.LED display.
CT Ratio: Settable 30A/5A to 999A/5A .Default
50A/5A.
Frequency: Frequency Display for R-Phase.
Cutout dimensions: 96 mm X 96 mm X 65mm
Password: Separate Password for setting Ct-Ratio
(Factory set Password 10) & Current Calibration
(Offset) (Factory set Password 14) Field Calibration:
Current Calibration (Offset) can be done at site
Hour counter: Hour counter up to 65535.0 hrs
(Resolution 0.1 = 6 minutes)
